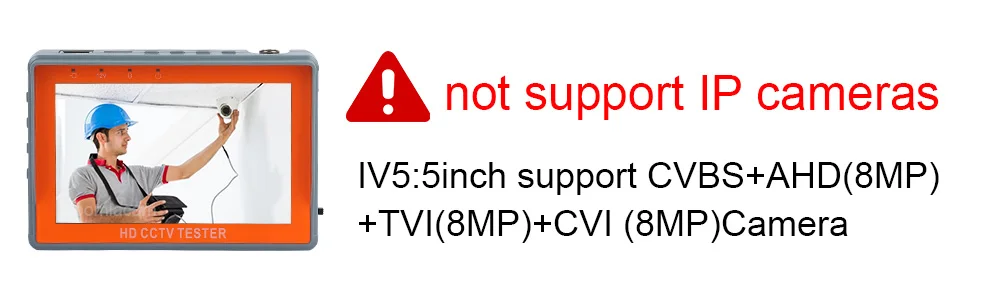

IV5support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest: Please note: not support IP camera

IV5 support :8MPcamera tester ,5 InchHD Screen resolution 800*480,Support 8MP AHD + 8MP TVI + 8MP CVI / CVBS Video tester ,UTC(HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information ) and RS485 and UTP Function .

IV7Wsupport CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP)4.3 InchCamera VideoTest:Please note: not support IP camera

(1) HD AHD Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test; (2) HD TVI Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test; (3) HD CVI Camera test : Support 4MP 3MP 1080P 720P Camera Video test;

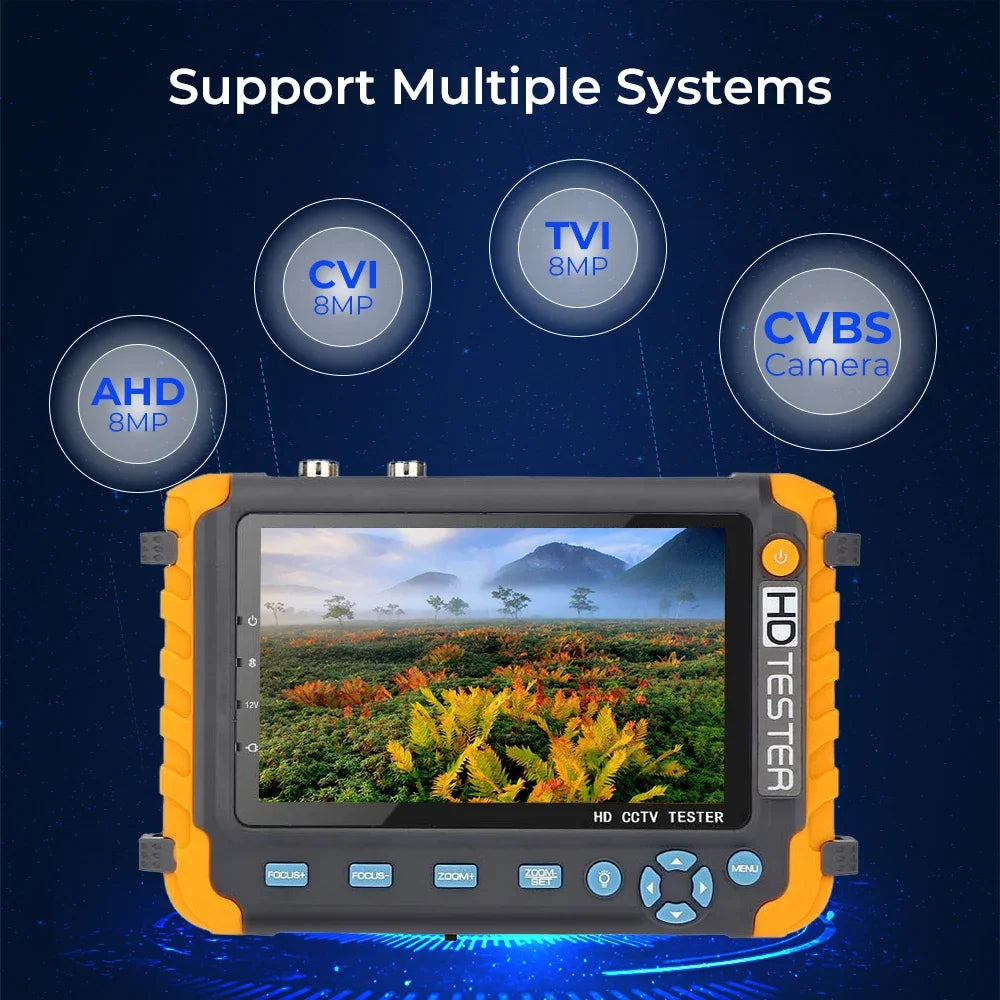

• ✅ [CCTV Monitor Tester] Upgraded 5.0-inch 800 x 480 high-resolution analog camera tester with clear picture quality and supports PAL/NTSC standard video signals. Support CVBS/AHD/TVI/CVI camera test. (Maximum support 8MPAHD/TVI/CVI, Only Supports Analog Cameras)

• ✅[CCTV tester] is specially developed for on-site installation and maintenance of analog cameras and high-definition coaxial cameras, providing many useful functions, such as video display, pan/tilt control, DC12V output power, audio testing, image generation Adapter, VGA video signal input, HDMI1.0 input(It is Suitable for Testing DVR/NVR), RS485 data search, cable test, LED lights, etc.

• ✅ [PTZ controller] The video surveillance tester has built-in Pelco-D/P PTZ control protocol, etc. Through the built-in RS485 interface, the user can control the up and down, left and right rotation of the PTZ, and can adjust the zoom, focus, and aperture size in one machine.

• ✅ [UTP test] The tester supports UTP cable testing, displaying the UTP cable connection status, cable type and wire sequence, and reading the test box number.

• ✅[CCTV tester] DC12V 1A output power supply, use the DC12V power supply output by the tester to power the camera, and it can work continuously for 11 hours after being fully charged.(note:The device cannot be used at low voltage. When the device prompts low voltage or low battery, you need to stop using it and charge it )

IV8W Application Please note: not support IP camera

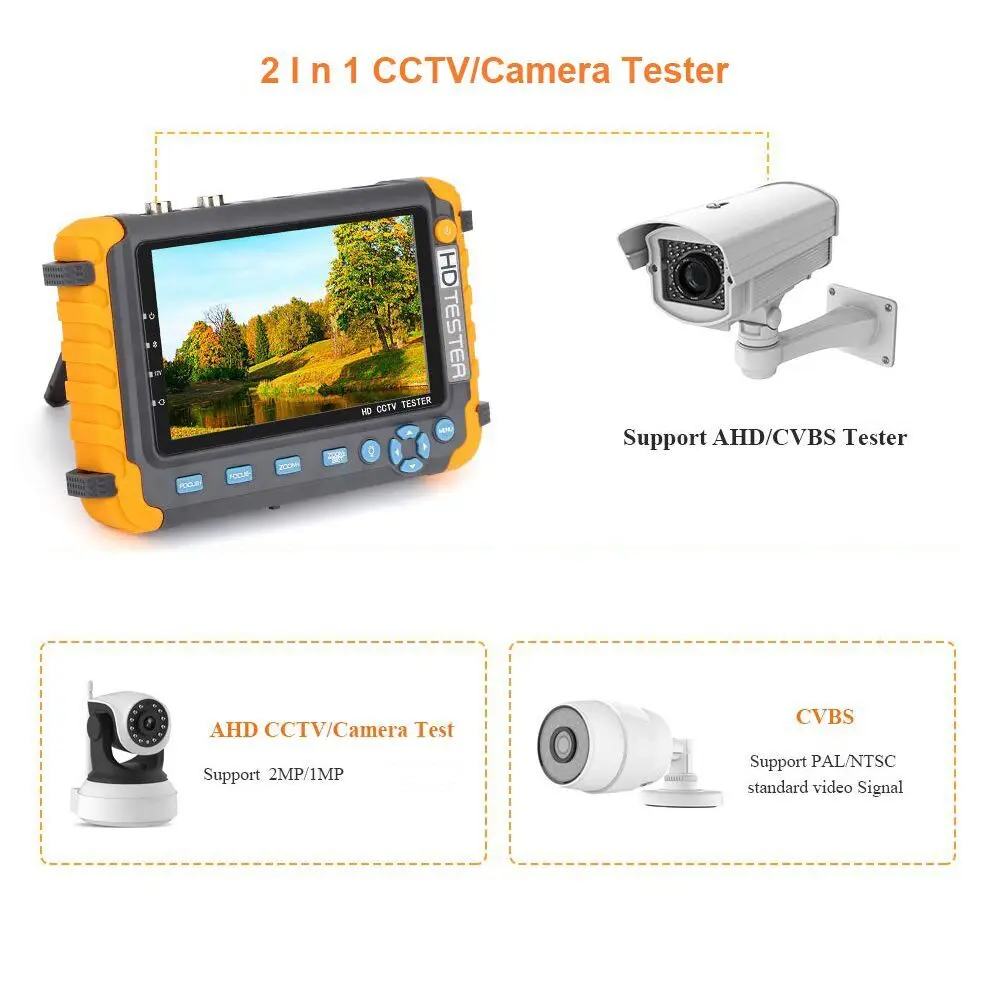

The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

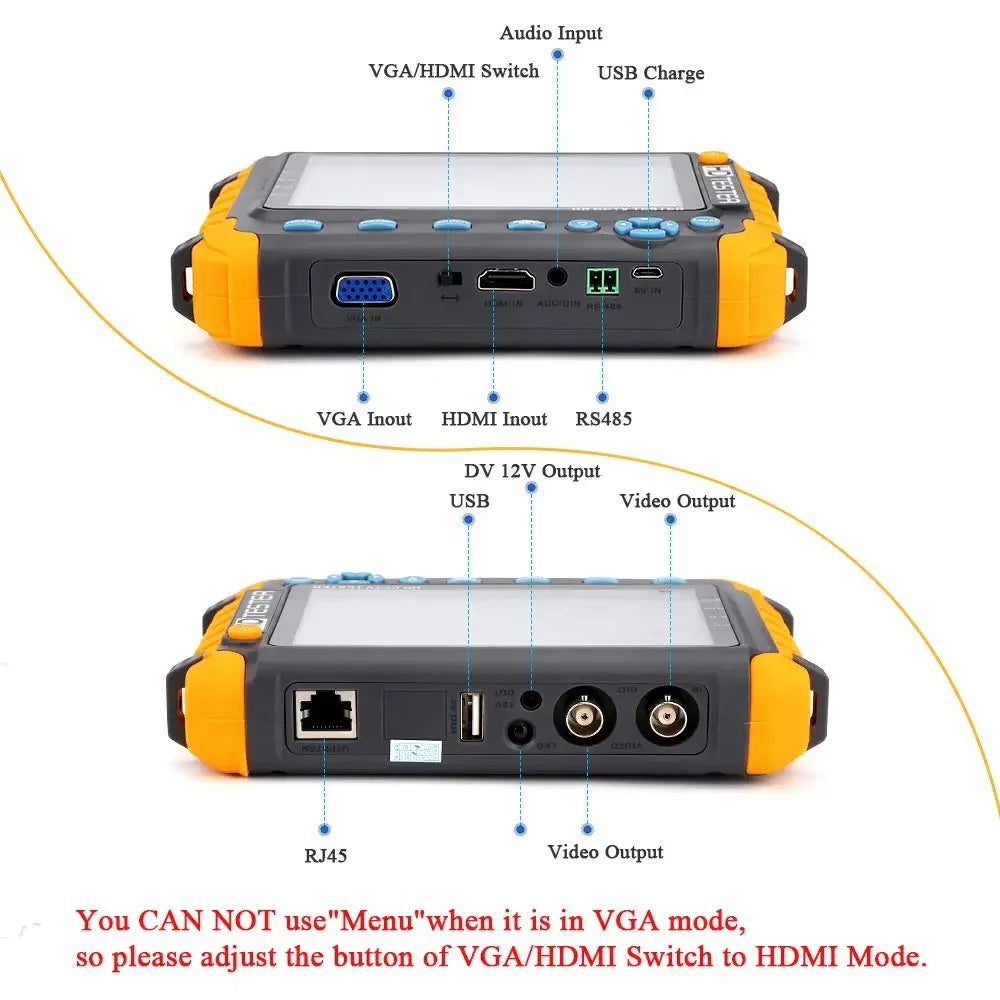

HDMI &VGA Input

VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

DC12V 1A output power for camera

The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

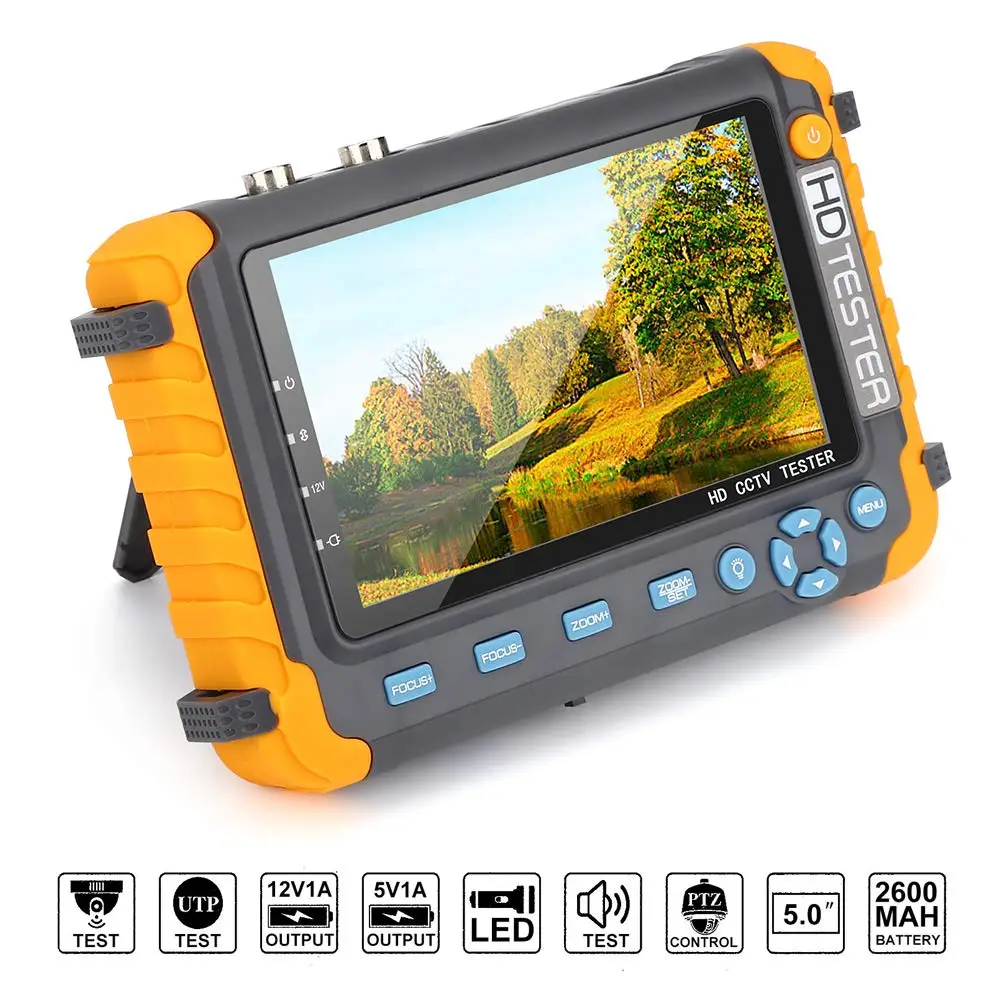

LCD Screen

Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

Enhanced network cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

TVI input

1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

AHD camera test

support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.

CVI camera test

1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
